Environment Test Chamber High And Low Temperature Cycle Test 800L
Brand: HBYIQI
Equipment Name: 800L High And Low Temperature Cycle Test Machine
Relevant standards or equivalent requirements:
Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:
- High - temperature test
- Low - temperature test
- High and low temperature cycle test
- Cold test
- Dry heat test
Application:
The high and low temperature cycle test chamber (also known as high and low temperature cycle test box, programmable high and low temperature cycle box, high and low temperature cycle temperature control device, etc.) is mainly used to test the endurance of products, materials, etc. in a continuous high and low temperature environment after cyclic testing, so as to test the chemical changes and physical damage caused by thermal expansion and contraction. This equipment is suitable for products such as batteries, electrical and electronic products, automotive machinery and electronics, aerospace, information and communication, national defense technology, and energy materials.
Technical Parameter
| Model | HB-A01-600L (A/B/C) |
| Volume | 600L |
| Inner Chamber Dimensions (cm) | W100*D80*H100 |
| Outer Chamber Dimensions (cm) | W128*D175*H205 |
| Temperature Range | Type A: -20°C ~ 150°C Type B: -40°C ~ 150°C Type C: -65°C ~ 150°C |
| Temperature Resolution | 0.01°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±2°C |
| Heating Rate | (≥3°C/min non - linear control, no load) (Fast temperature change rate can be customized) |
| Cooling Rate | (0.8 - 1.5°C/min non - linear control, no load) (Fast temperature change rate can be customized) |
| Control System | PLC balanced temperature control programmable control system |
| Language | Supports Chinese and English |
| Refrigeration System | Adopts French "Tecumseh" compressors and well - known refrigeration system accessories |
| Heating System | Adopts nickel - chromium alloy electric heating wires |
| Protection Devices | Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, fault alarm system. |
| Shelves | 2 pieces are standard (more can be selected as accessories) |
| Wiring Hole | Ø50mm/1 piece |
| Voltage (V) | AC 380V |
| Power (KW) | 9-12KW |
| Weight (kg) | To be confirmed before shipment |
Detail Screen Display

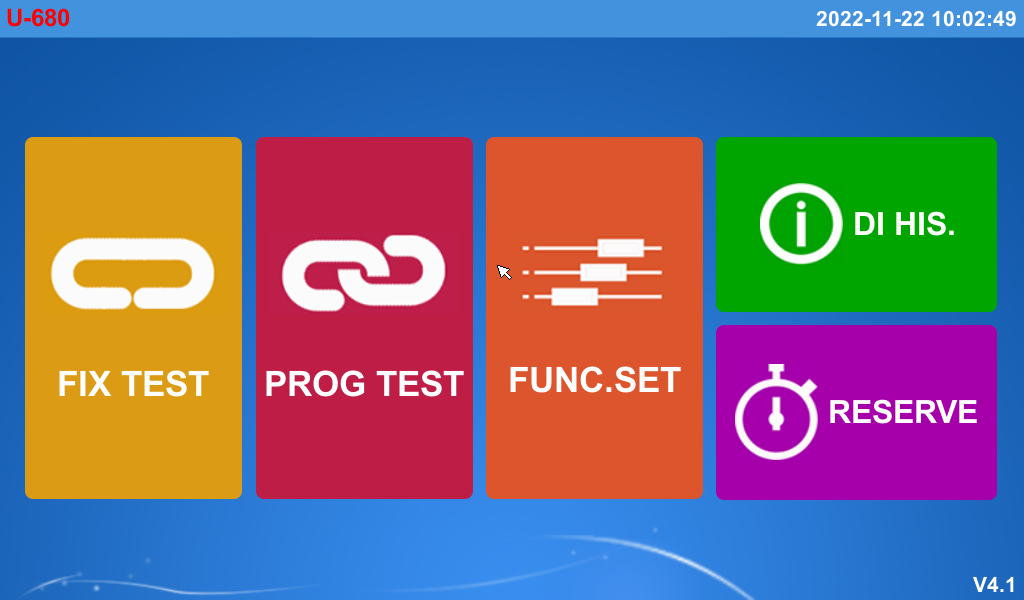

- Control System Interface

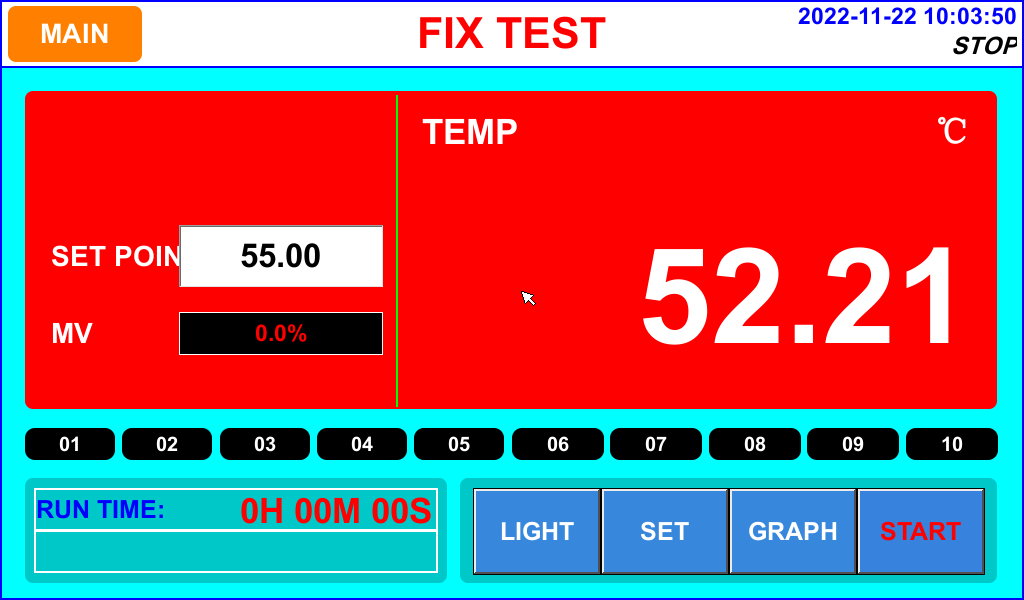

- Fixed Value Experiment

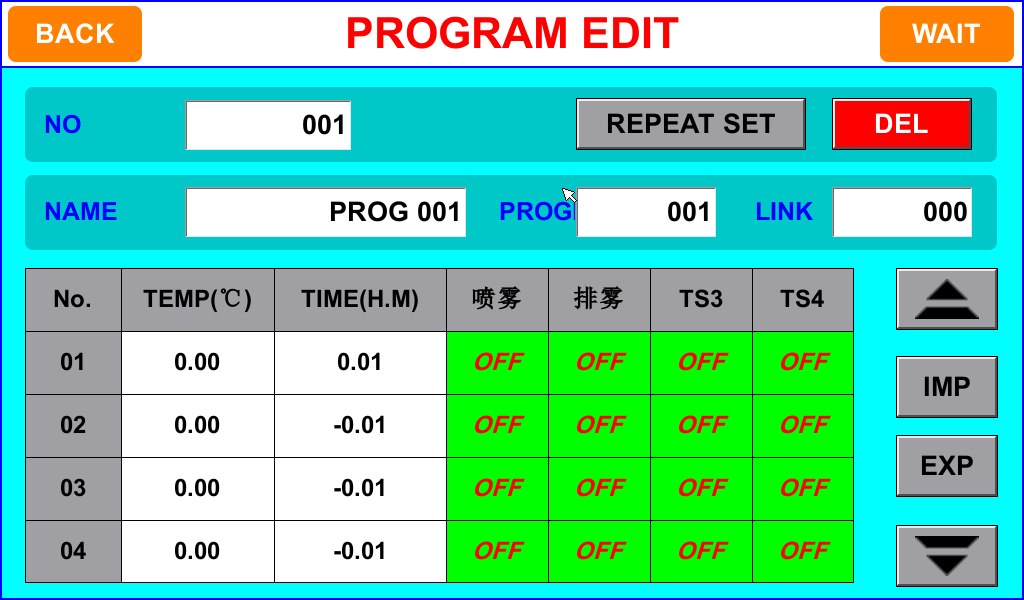

- Program Experiment
- Data Record
